Lift Innovation Universal, LLC supplies premium Crimp-type Frac Hose solutions engineered for high-pressure hydraulic fracturing, acidizing, stimulation, and well service operations. Designed to replace rigid flow iron in many applications, our frac hoses provide superior flexibility, faster rig-up time, safer routing, and dependable pressure performance in demanding oilfield environments.
Built with advanced rubber compounds, multi-layer steel reinforcement, and rugged external protection, LIU frac hoses are trusted for fluid transfer between frac pumps, manifolds, zipper manifolds, and wellhead systems. Whether operating in shale plays, conventional oilfields, remote locations, or harsh weather environments, our hose systems deliver reliable service where uptime matters most.

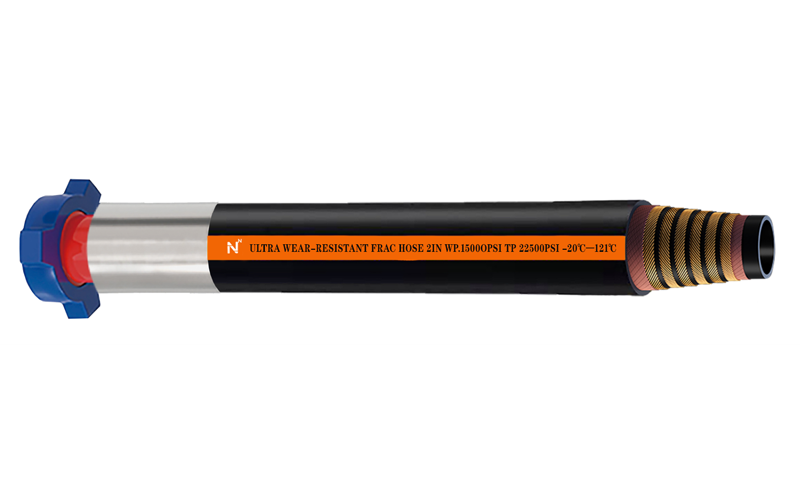

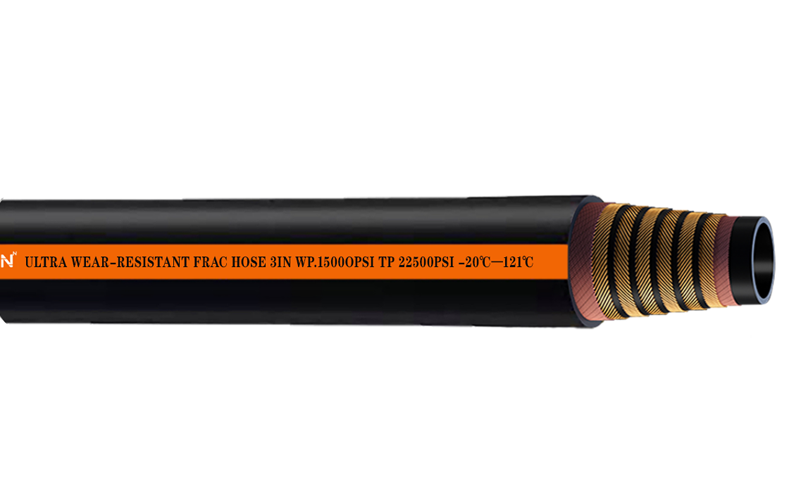

Inner Tube: Premium abrasion-resistant and chemical-resistant rubber compound designed for frac fluids, acids, water, and stimulation media.
Reinforcement Layer: Multiple layers of high-tensile steel wire rope or spiral reinforcement for maximum pressure containment and structural stability.
Outer Cover: Heavy-duty weather-resistant rubber cover providing superior abrasion resistance, ozone protection, and field durability.
External Protection: Optional spiral armor wrap available for added wear resistance in high-contact frac locations.
High Pressure Rated: Working Pressure up to 15,000 psi, Hydro Test Pressure 22,500 psi, Minimum Burst Pressure 33,750 psi.
Reduced Rig-Up Time: Faster connection and easier routing than rigid iron systems, helping crews save time and reduce labor cost.
Improved Safety: Fewer rigid connections, less handling risk, easier positioning, and simplified line management.
Long Service Life: Designed for repeated frac service with excellent resistance to abrasion, vibration, and harsh fluids.
Flexible Layout: Engineered for modern frac spreads where space efficiency and fast deployment are critical. The hose can be routed around pumps, manifolds, zipper manifolds, sand equipment, and wellhead systems with greater ease than rigid iron, making it ideal for complex site layouts, narrow work zones, and temporary pumping setups.
Wide Temperature Range: Designed to perform reliably in challenging climates and changing field conditions, with an operating temperature range of -20°F to +212°F (-29°C to +100°C). Suitable for cold-weather operations, hot summer environments, and continuous high-demand service applications.
Multiple Connection Options: Available with industry-standard Fig 1502 hammer unions, API flanges, and customized end connections to match customer equipment and pressure pumping systems. This allows seamless integration with existing frac fleets, manifold systems, and wellhead configurations.
Easy Transportation: Significantly lighter and easier to handle than traditional steel flow iron assemblies. Reduced weight improves loading efficiency, lowers transportation costs, simplifies movement on location, and helps crews complete rig-up and rig-down operations faster.
Reduced Downtime: Faster installation, simplified routing, and easier replacement help minimize non-productive time during pressure pumping operations, allowing crews to keep equipment online and maintain pumping schedules.
Improved Crew Efficiency: Easier handling and quicker deployment reduce manual labor requirements, helping operators improve crew productivity while enhancing overall site safety and workflow efficiency.
LIU Crimp-type Frac Hose is engineered for demanding pressure pumping, stimulation, and high-pressure fluid transfer service across modern oilfield operations. Its flexible design, high-pressure capability, and reliable field durability make it an ideal solution for both conventional and unconventional wellsite applications.
From shale frac spreads and acidizing treatments to temporary bypass systems and emergency field replacement work, our frac hose helps operators reduce rig-up time, simplify layouts, improve safety, and maintain continuous pumping performance under harsh operating conditions.

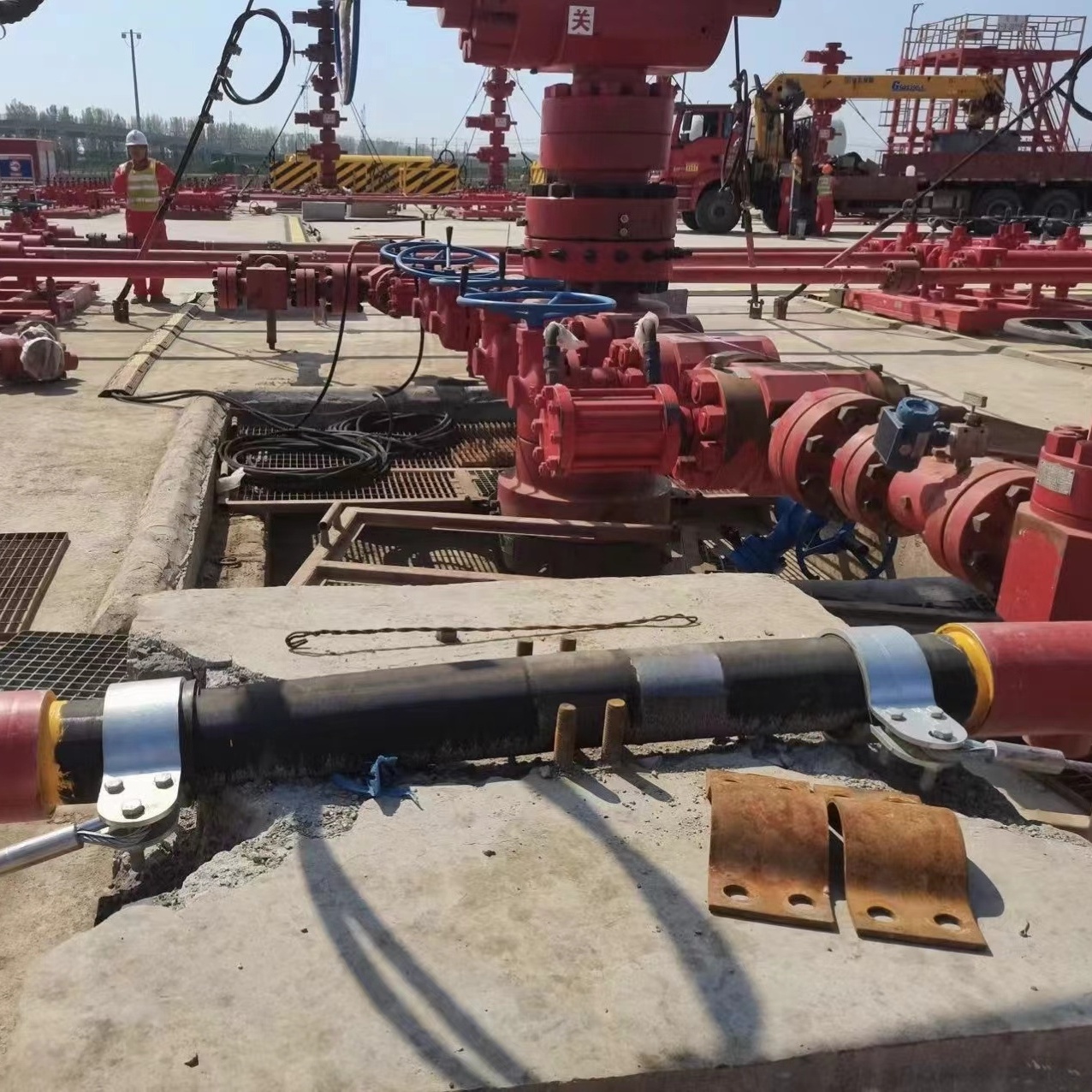

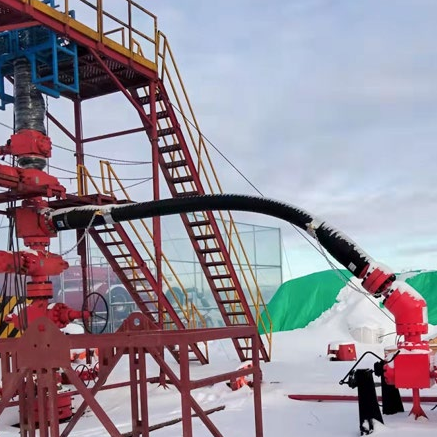

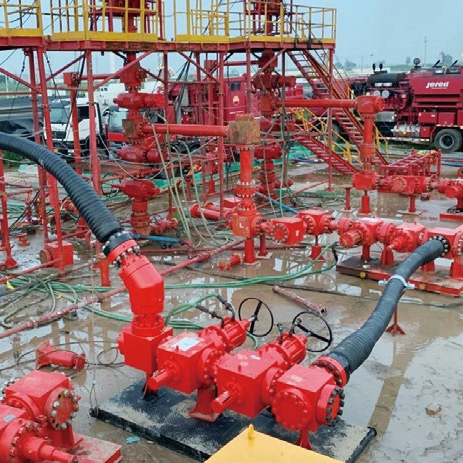

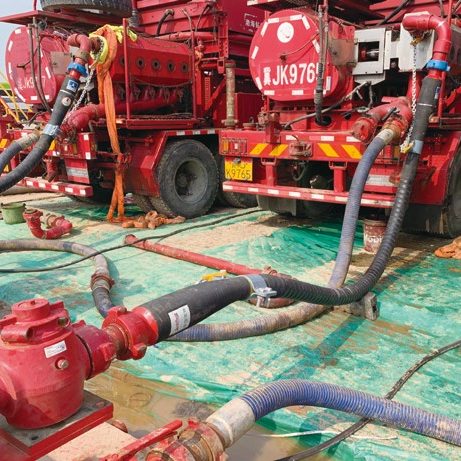

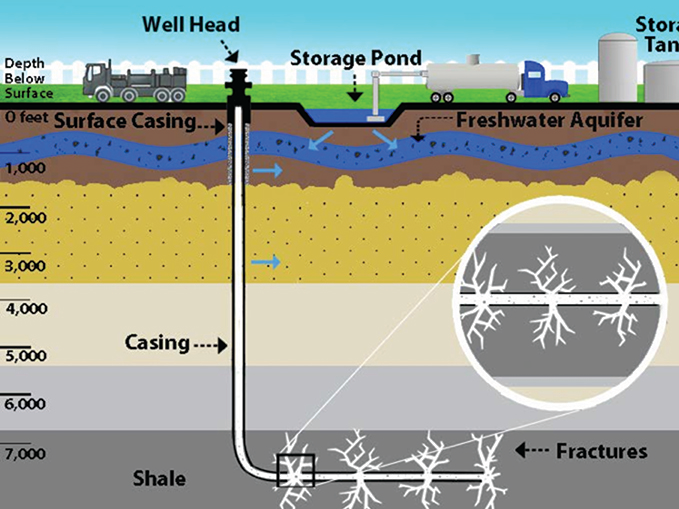

Widely used between frac pumps, treating iron, manifolds, zipper manifolds, and wellhead trees for safe and efficient high-pressure fluid transfer during hydraulic fracturing operations. Designed to withstand demanding pumping cycles, vibration, surge pressure, and continuous service in active frac environments, helping operators maintain stable pumping performance, improve flow continuity, and reduce connection-related downtime during critical pumping stages.
Suitable for acidizing treatments, matrix acid jobs, stimulation service, and temporary high-pressure transfer lines where chemical resistance, pressure integrity, and mobility are essential. Available with hose compounds compatible with aggressive treatment fluids, making it a practical solution for well intervention, production enhancement, and specialized stimulation programs where reliability and safe fluid handling are required.

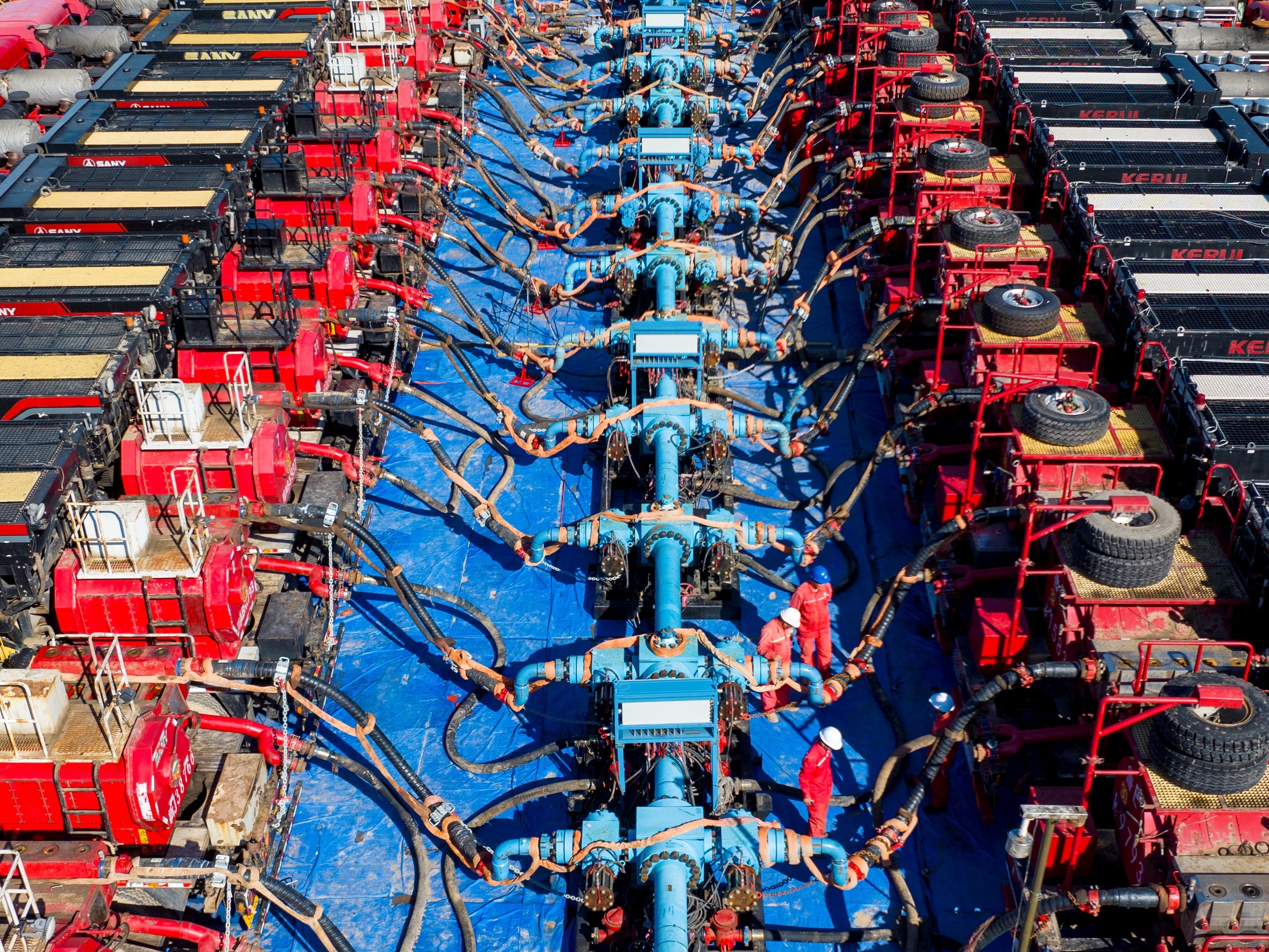

Ideal for shale developments, zipper frac operations, and multi-pump spreads where fast deployment, flexible routing, and reduced iron handling are critical. Helps crews optimize site layout, simplify line routing, lower connection complexity, and shorten rig-up time while improving operational efficiency, crew productivity, and equipment utilization across large-scale pressure pumping spreads.
Excellent solution for rapid-response well service, bypass lines, temporary pumping systems, maintenance shutdowns, and urgent replacement of damaged rigid iron connections. Quick installation and easier handling help reduce non-productive time, restore operations faster, and provide dependable temporary fluid transfer when immediate response, short-term reliability, and operational continuity are required.
Standard Supply Range:
| I.D. in |
I.D. mm |
O.D. mm |
W.P. psi |
T.P. psi |
Min.B.R. mm |
Min.B.R. ft |
Weight kg/m |
Weight lbs/ft |
Volume bbl/min |
Volume m³/min |
Connection |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 51 | 107 | 15000 | 22500 | 800 | 2.62 | 18 | 12.1 | 13.2 | 2.1 | 3" FIG 1502 Hammer Union or 3 1/16" 15K API Flange Connection |
| 2.5 | 64 | 120 | 15000 | 22500 | 900 | 2.95 | 25 | 16.8 | 21.4 | 3.4 | 3" FIG 1502 Hammer Union or 3 1/16" 15K API Flange Connection |
| 3 | 69 | 128 | 15000 | 22500 | 1000 | 3.28 | 28 | 18.8 | 24.5 | 3.9 | 3" FIG 1502 Hammer Union or 3 1/16" 15K API Flange Connection |
| 3 | 76 | 133 | 15000 | 22500 | 1100 | 3.61 | 31 | 20.8 | 30.2 | 4.8 | 3" FIG 1502 Hammer Union or 3 1/16" 15K API Flange Connection |
| 4 | 89 | 164 | 15000 | 22500 | 1200 | 3.93 | 50 | 33.6 | 41.5 | 6.6 | 4" FIG 1502 Hammer Union or 4 1/16" 15K API Flange Connection |
| 4 | 102 | 179 | 15000 | 22500 | 1300 | 4.26 | 58 | 38.9 | 54.7 | 8.7 | 4" FIG 1502 Hammer Union or 4 1/16" 15K API Flange Connection |
| 5 | 120 | 208 | 15000 | 22500 | 1400 | 4.59 | 78 | 52.4 | 65 | 10.3 | 5 1/8" 15K API Flange Connection |
| 5 | 127 | 216 | 15000 | 22500 | 1400 | 4.59 | 84 | 56.4 | 110 | 17.6 | 5 1/8" 15K API Flange Connection |
| 6 | 152 | 255 | 15000 | 22500 | 1700 | 5.57 | 123 | 82.6 | 113.2 | 18 | 7 1/16" 15K API Flange Connection |
| 2 | 51 | 112 | 20000 | 30000 | 1000 | 3.28 | 24 | 16.1 | 15.1 | 2.4 | 2" FIG 2002 Hammer Union or 3 1/16" 20K API Flange Connection |
| 2.5 | 64 | 133 | 20000 | 30000 | 1100 | 3.60 | 34 | 22.8 | 23.3 | 3.7 | 3" FIG 2002 Hammer Union or 3 1/16" 20K API Flange Connection |
| 3 | 76 | 159 | 20000 | 30000 | 1500 | 4.92 | 55 | 36.9 | 21.1 | 5.1 | 3" FIG 2002 Hammer Union or 3 1/16" 20K API Flange Connection |
| 4 | 102 | 202 | 20000 | 30000 | 1700 | 5.57 | 92 | 61.8 | 56.6 | 9 | 4 1/16" 20K API Flange Connection |
Custom lengths, end connections, and pressure ratings are available upon request. Contact Lift Innovation Universal for detailed specifications and delivery schedules.

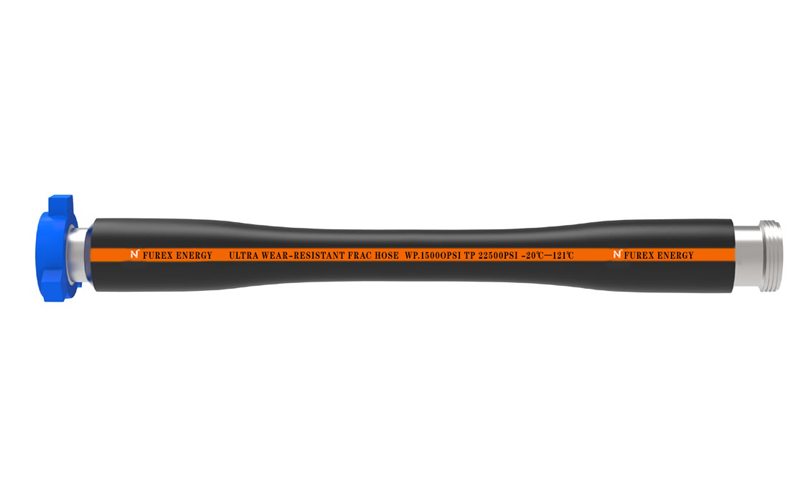

Lift Innovation Universal, LLC supplies advanced Integral Frac Hose systems engineered for next-generation hydraulic fracturing, stimulation, and high-pressure fluid transfer operations. Unlike conventional crimped hose assemblies, the integral hose utilizes a fully bonded end connection through advanced integrated vulcanization technology, creating a stronger, safer, and more reliable hose-to-fitting interface.
Designed for modern pressure pumping fleets, LIU Integral Frac Hose delivers full-bore flow efficiency, superior flexibility, reduced connection risk, and excellent performance under extreme pressure and temperature conditions. It is an ideal solution for operators seeking higher uptime, improved safety, and longer service life.

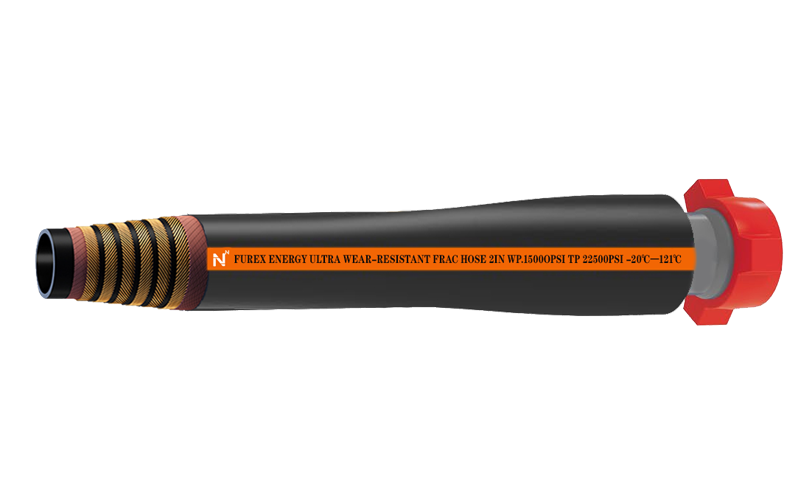

Integrated Vulcanization: Specially treated metal end fittings are pre-positioned before hose forming, then chemically bonded to the hose body during the vulcanization process.
Molecular-Level Bonding: The hose body and connector become one unified structure rather than relying solely on mechanical retention.
Advanced Reinforcement: Multiple layers of high-strength steel wire rope winding provide excellent pressure resistance while maintaining flexibility.
Premium Materials: UPE inner liner and rugged outer cover ensure resistance to chemicals, abrasion, weather, and repeated frac service.
Full-Bore Flow Path: Smooth internal transition between hose body and fitting minimizes turbulence, reduces pressure loss, and improves pumping efficiency.
Reduced Erosion: Optimized flow path lowers wear caused by sand, proppant, and abrasive frac fluids.
Ultra-High Safety: Chemical fusion between hose and fitting greatly reduces the risk of end connection separation under pressure.
Reduced Downtime: Reliable connection integrity helps lower unplanned shutdowns and maintenance interruptions.
Superior Flexibility: Eliminates bulky external sleeves, creating a lighter and more flexible hose assembly for easier routing in crowded frac spreads.
Lightweight Design: Easier transportation, faster rig-up, and reduced manual handling requirements for field crews.
Temperature Resistance: Engineered for demanding climates with operating capability up to 120°C and down to -45°C.
Improved Bend Transition: Smoother stiffness transition from fitting to hose body helps reduce bending fatigue near hose ends.
Longer Service Life: Designed for repeated pressure cycles, harsh fluids, and continuous pumping operations.
LIU Integral Frac Hose is engineered for critical fluid transfer operations where pressure integrity, flexibility, and operational reliability are essential. Widely used in shale developments, stimulation fleets, well completions, offshore support systems, and temporary production lines.

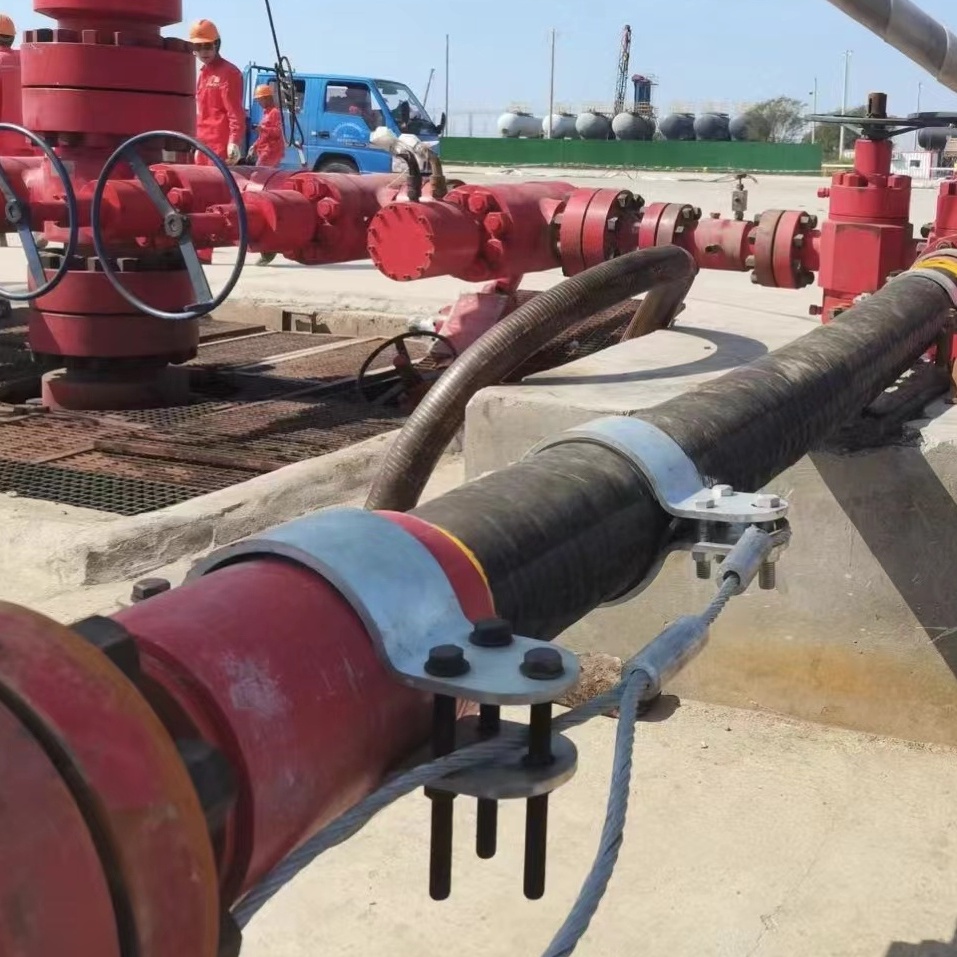

Widely used for transferring fracturing fluids, additives, and high-pressure slurry between frac pumps, manifolds, zipper manifolds, and wellhead equipment during hydraulic fracturing operations. Engineered to withstand continuous pressure cycles, vibration, and demanding pumping schedules while maintaining safe and efficient fluid delivery throughout the frac spread.
Designed to handle sand-laden and highly abrasive fluids while minimizing internal erosion and maintaining long-term performance. The smooth full-bore flow path helps reduce turbulence, lower wear from proppant impact, and extend hose service life under repeated high-volume pumping conditions.
Suitable for corrosion inhibitors, friction reducers, acid systems, and specialized treatment fluids requiring chemical compatibility and secure containment. Ideal for stimulation programs, matrix acid jobs, and fluid treatment operations where safety, sealing integrity, and reliable hose performance are essential.
Excellent solution for temporary transfer systems, water recycling lines, bypass piping, and short-term production connections. Flexible hose construction allows rapid installation and efficient routing, helping operators reduce setup time and maintain fluid movement in changing field conditions.

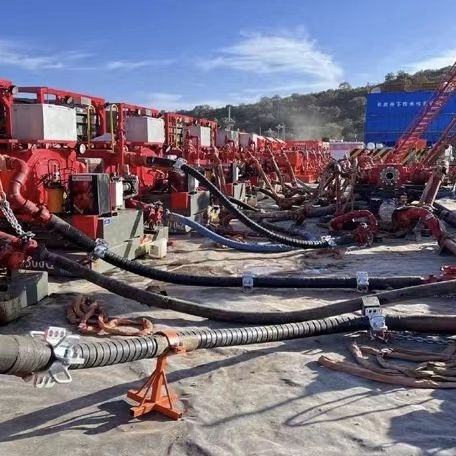

Flexible hose systems are ideal where space is limited, installation speed matters, or rigid iron handling is difficult. Commonly used in offshore platforms, remote pads, mobile pumping units, and isolated locations where lightweight equipment and simplified deployment provide major operational advantages.
Standard Supply Range:
| I.D. in |
I.D. mm |
O.D. mm |
W.P. psi |
T.P. psi |
Min.B.R. mm |
Min.B.R. ft |
Weight kg/m |
Weight lbs/ft |
Volume bbl/min |
Volume m³/min |
M.F.T. KN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 51 | 110 | 15000 | 22500 | 800 | 2.62 | 25.3 | 17.0 | 13.8 | 2.2 | >400 |
| 2.5 | 64 | 122 | 15000 | 22500 | 900 | 2.95 | 29.8 | 20.0 | 22.0 | 3.5 | >500 |
| 2.7 | 68 | 131 | 15000 | 22500 | 1000 | 3.28 | 38.5 | 25.0 | 25.2 | 4.0 | >700 |
| 3 | 76 | 136 | 15000 | 22500 | 1100 | 3.60 | 41.2 | 27.6 | 30.8 | 4.9 | >800 |
| 3.5 | 89 | 175 | 15000 | 22500 | 1300 | 4.26 | 58.0 | 38.9 | 42.1 | 6.7 | >1000 |
| 4 | 102 | 185 | 15000 | 22500 | 1400 | 4.59 | 65.0 | 43.7 | 55.4 | 8.8 | >1100 |
| 5 | 127 | 230 | 15000 | 22500 | 1500 | 4.92 | 96.0 | 64.5 | 110.7 | 17.6 | >1200 |
| 2 | 51 | 136 | 20000 | 30000 | 1000 | 3.28 | 44.0 | 29.5 | 15.1 | 2.4 | >600 |
| 2.5 | 64 | 165 | 20000 | 30000 | 1100 | 3.60 | 51.0 | 34.2 | 23.3 | 3.7 | >700 |
| 2.7 | 68 | 166 | 20000 | 30000 | 1200 | 3.93 | 53.0 | 35.6 | 26.4 | 4.2 | >900 |
| 3 | 76 | 175 | 20000 | 30000 | 1200 | 3.93 | 57.0 | 38.3 | 32.1 | 5.1 | >1000 |
Custom lengths, end connections, and pressure ratings are available upon request. Contact Lift Innovation Universal for detailed specifications and delivery schedules.
